Torque & Drag analysis
Advanced drilling, casing and completion operations analysis
Oliasoft WellDesign’s Torque and Drag functionality generates torque and drag calculations through forensic analysis of drilling, casing, and completion operations
- Use Oliasoft Torque and Drag to analyze drilling, casing, and completion operations, and assess the impact of predicted loads related to torque and drag in soft and hybrid string configurations.
- Calculate torque, drag, including tension, fatigue, buckling, triaxial stress, and side forces at any point of the string for multiple scenarios.
- Visualise standard plots including hook load, tension, stress analysis and buckling, and access 3D views of downhole drillstring showing side forces, string clearance and torque and drag levels.
- Harness the functionality with the full power of Oliasoft WellDesign to run sensitivity on torque and drag based on a large number of trajectory or casing designs.
- Perform torque and drag in real-time operations for stress predictions, and run calculations during drilling to get the optimal views of every stage of the drilling operations process.

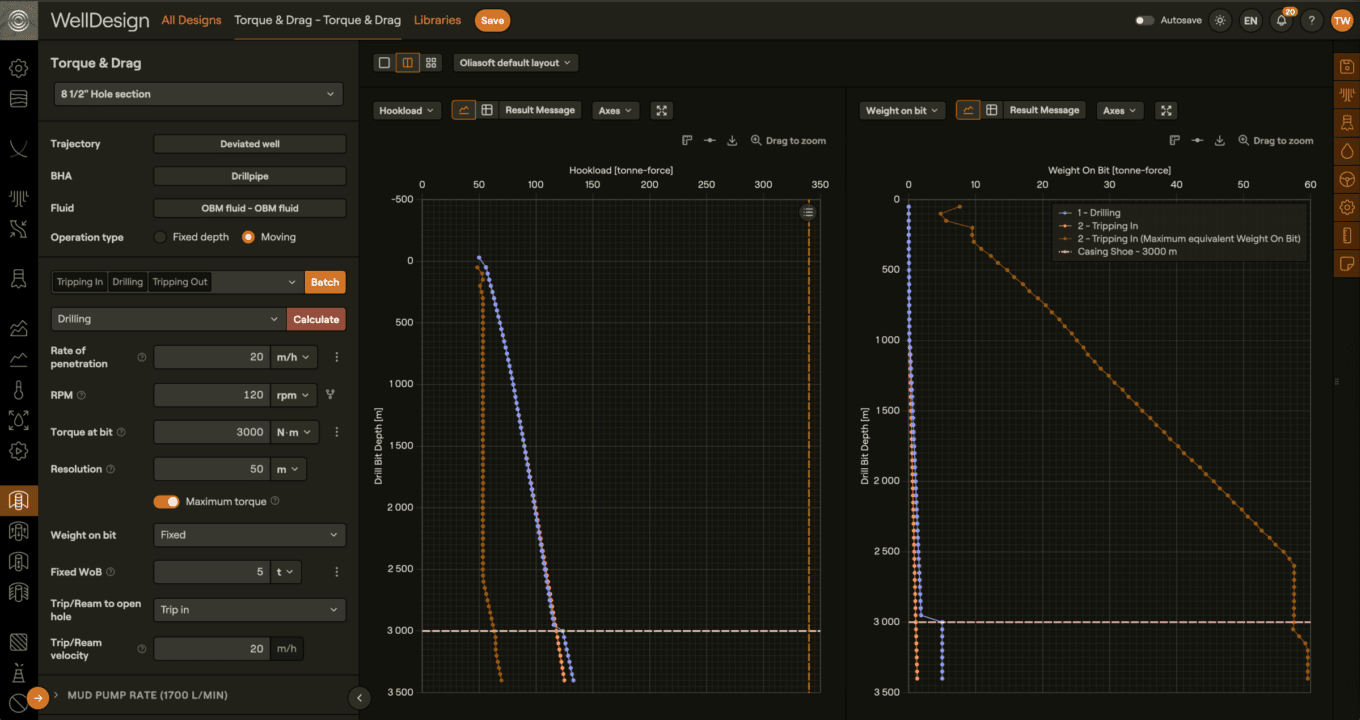

![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque_Hookload-and-weight-on-bit.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=52a2063c56326e5364027c028392e887 680w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque_Hookload-and-weight-on-bit.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=42f8e6bb4ed9a7bc407d2bb7933b6e1a 850w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque_Hookload-and-weight-on-bit.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=f89cbaa1b35513bcc7d1bb8c8218d6b8 1020w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque_Hookload-and-weight-on-bit.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=96f13f98d56cc0839bd40e1da8f818ab 1191w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque_Hookload-and-weight-on-bit.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=8f72bd2acfc9432662f6377783545611 1361w)
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Effective-tension.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=d58b3bcc6cb2a65cd271389970923787 679w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Effective-tension.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=f973f18526fc7e8053b925b10abd7dbe 849w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Effective-tension.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=33ad166f5e0da7403198d42ff5e5b5f4 1019w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Effective-tension.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=632379707365481ec1d44c6e13c85dd0 1189w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Effective-tension.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=6a9dd71fe3b41a5da79f855b736e41a8 1358w)
![](https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Drag-summary-table.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=360&q=75&s=afe76c80002440bd2a7475ebfbc45f93 679w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Drag-summary-table.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=450&q=75&s=72a8eddcfec1e584b52928f2f5170268 848w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Drag-summary-table.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=540&q=75&s=1c7e1171b80bd17e53a8de9669564b39 1018w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Drag-summary-table.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=630&q=75&s=394a3a2c5a8d7700c2c4194b5d9c12b6 1188w, https://oliasoft.imgix.net/images/Oliasoft-WellDesign-Screenshots/Torque-drag/Torque-Drag-summary-table.png?auto=compress%2Cformat&cs=srgb&fit=clip&h=720&q=75&s=ece7fb4768f502bb04515ec5271652cc 1357w)
Key features
-
Perform torque and drag calculations for drilling, casing and completion operations
-
Full BHA editor including motors and other torque and drag generating components
-
Complete buckling and stress analysis including Yied and Von Mises stress
-
Full 3D view of downhole string analysis
-
Bulk calculation of multiple scenarios based on trajectory and casing design
-
Supports soft and hybrid string analysis
